我公司优惠供应 GE 电流互感器 P/N: 143-500。
我公司供应的 143-500 货源正宗，价格合适，交货及时，欢迎联系报价！

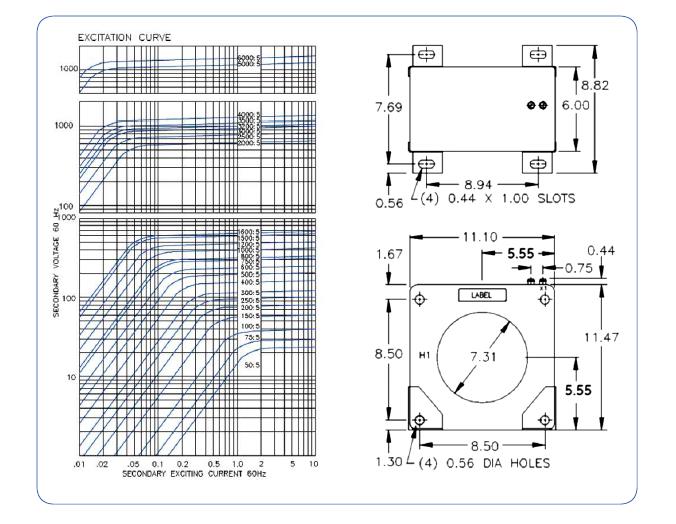

GE 电流互感器 P/N: Number: 143-500
Model 143
Current Transformer
Window Diameter 7.31”
Application: Relaying and metering.
Frequency: 50-400 Hz.
Insulation Level
600 Volt, 10 kV BIL full wave.
Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
Order mounting bracket kit 0221B00775 separately.
Multi-ratios available on request.
Approximate weight 60 lbs.
| Catalog-No. |
Current-Ratio |
Catalog-No. |
Current-Ratio |
| 143-500 |
50:5 |
143-102 |
1,000:5* |
| 143-750 |
75:5 |
143-122 |
1,200:5* |
| 143-101 |
100:5 |
143-152 |
1,500:5* |
| 143-151 |
150:5* |
143-162 |
1,600:5* |
| 143-201 |
200:5* |
143-202 |
2,000:5* |
| 143-251 |
250:5* |
143-252 |
2,500:5* |
| 143-301 |
300:5* |
143-302 |
3,000:5* |
| 143-401 |
400:5* |
143-322 |
3,200:5* |
| 143-501 |
500:5* |
143-352 |
3,500:S* |
| 143-601 |
600:5* |
143-402 |
4,000:5* |
| 143-751 |
750:5* |
143-502 |
5,000:5* |
| 143-801 |
800:5* |
143-602 |
6,000:5* |
|
|
