优惠供应WATER CHEMISTRY公司生产的去离子单元 P/N: 323A2419P3–M045

我公司优惠供应WATER CHEMISTRY公司生产的去离子单元(GE P/N: 323A2419P3-M045)，广泛用于电厂等工况。

我公司供应的 323A2419P3-M045 货源正宗，价格合适，交货及时，欢迎联系报价！

我公司常年备有现货，欢迎联系洽谈！

RAINMAKER® Ultra Pure Coolant Purge Pod

Deionizer Specification

General

The application is to maintain the resistance of a closed loop coolant system of 80 gallons at a nominal 7 megohm cm.  The coolant is either pure water or a mixture of water and laboratory grade Propylene Glycol.  The parallel loop flow rate through the pod is 0.7 gpm and the inlet is at 50 psi.  The maximum coolant temperature is 155°F.

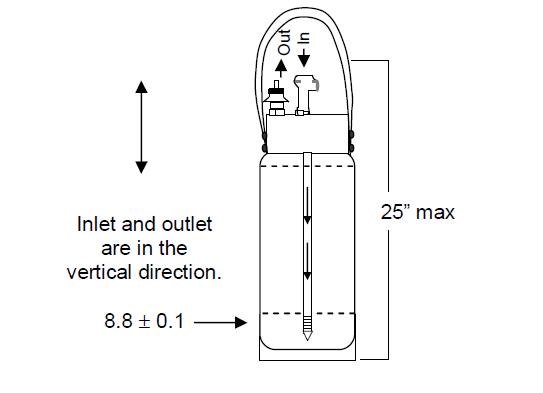

• Tank:  Similar in size to RT-818 by Park International Corp.
• Height:  25 inches maximum with fittings.
• Diameter:  8.8 ± 0.1” at the base.
• Capacity: .45 to .47 cubic feet.
• Material:  Fiberglass/ester laminate, thermoplastic liner.
• Weight:  5 pounds empty, 31 pounds dry, 48 pounds wet.
• Pressure rating:  75 psi at 155°F.
• Mixed be resin of suitable quality
• Volume:  .45 cubic feet or 100% of the available.
• None (no carbon filter media).
• Connections (identify inlet and outlet)

Domestic:  The shipping container must be suitable for common modes of postal or commercial delivery and should be clearly marked with this drawing number and applicable part number.  Safety data sheets for the resin in this canister should be placed in the shipping container.  This canister is to be marked with this drawing number and part number.
Export:  Water Chemistry, Inc. provides delivery in the United States only; however, a special hard-body shipper is available upon request.  Shipping container will conform to the regulations of the receiving country.
The canister should be labeled as follows:
